Makeblock  |  SKU: 81042

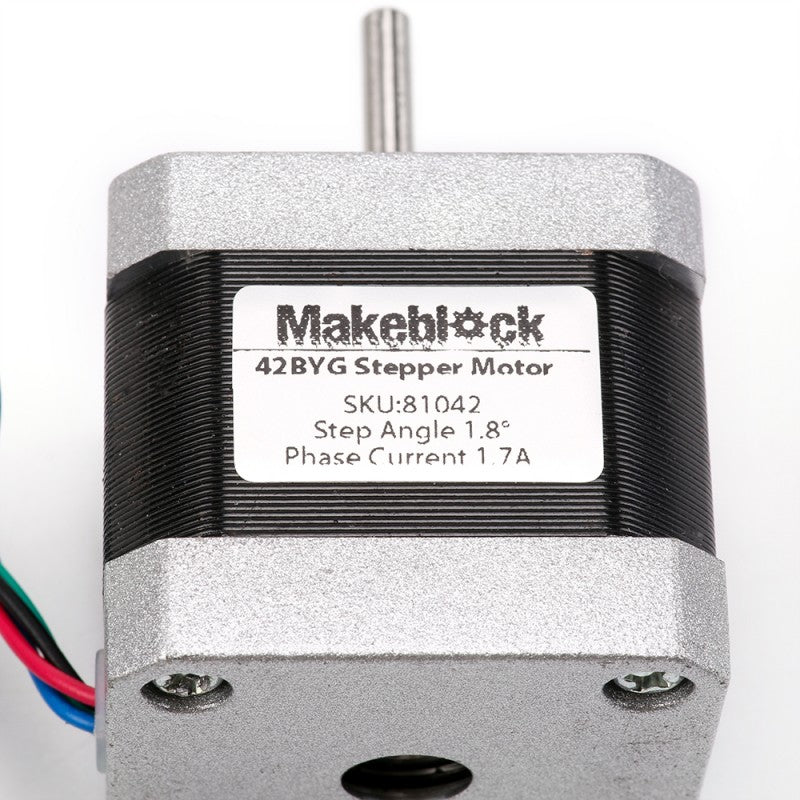

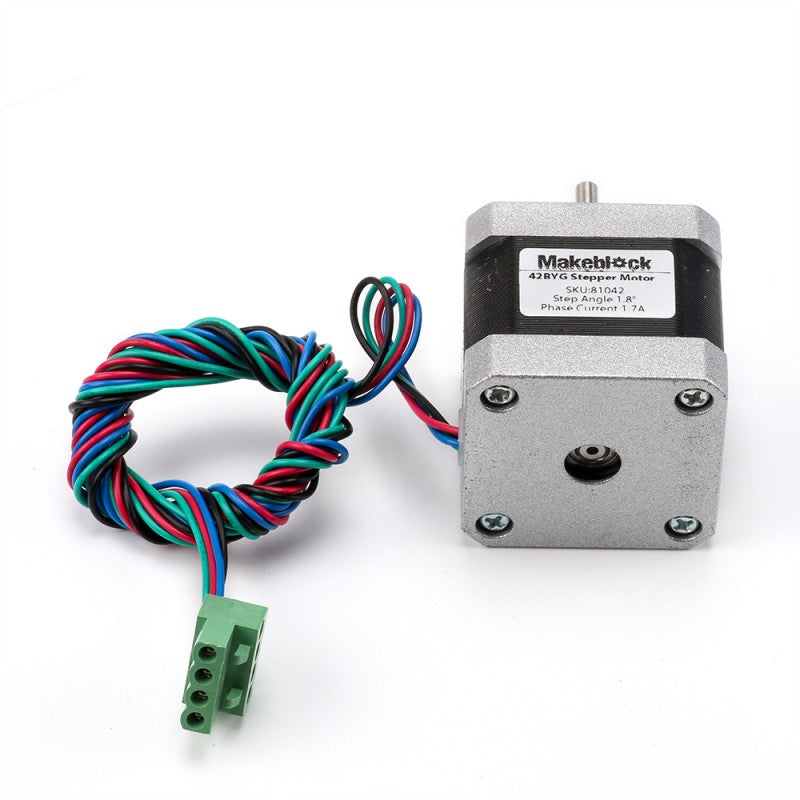

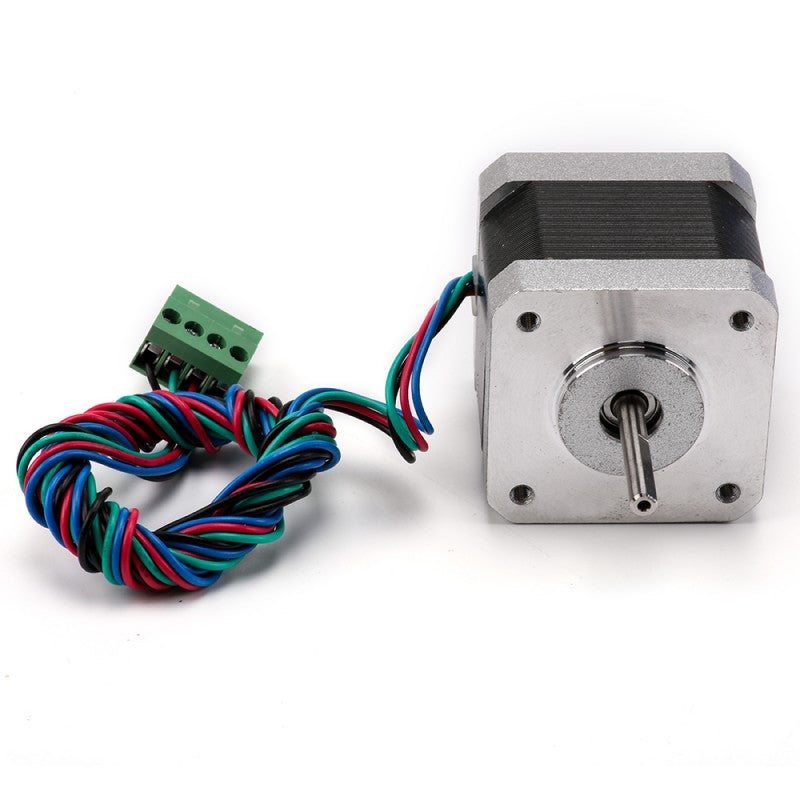

Makeblock 42BYG Stepper Motor

€24,90 EUR
Tax included
A bipolar stepper motor, four wired. It has a resolution of 200 steps per revolution (1.8 degree). It is supplied with the voltage of 12 V, consumes a current of 1700 mA per coil. The holding torque is 4 kg*cm (0.39 Nm).

Fast Delivery and Shipping across Europe
Free Delivery across Europe for order 149€ and more
  • Latvia and Lithuania: 1-2 business days
  • Finland: 1–3 business days
  • Other countries in Europe: 3–7 business days
  • Greece, Norway, Switzerland, United Kingdom: 5–10 business days

See more information about delivery and shipping here.

Specifications：
PHASE : 2PHASE
STEP ANGLE : 1.8+-5%°/STEP
RATED VOLTAGE : 12V
CURRENT : 1.7A/PHASE
RESISRANCE : 1.5+-10%/PHASE
INDUCRANCE : 2.8+-20%mH/PHASE
HOLDING TORQUE : 40N.cm Min
DETENT TORQUE : 2.2N.cm Max
INSULATION CLASS : B
LEAD STYLE : AWG26 UL1007
ROTOR TORQUE : 54G.cm2
