Makeblock  |  SKU: 11008

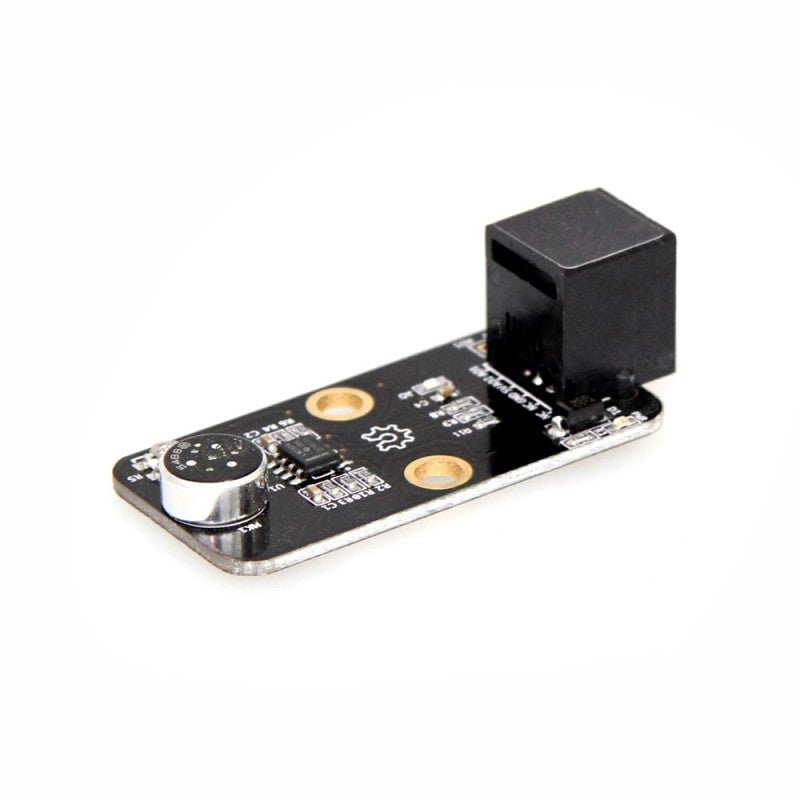

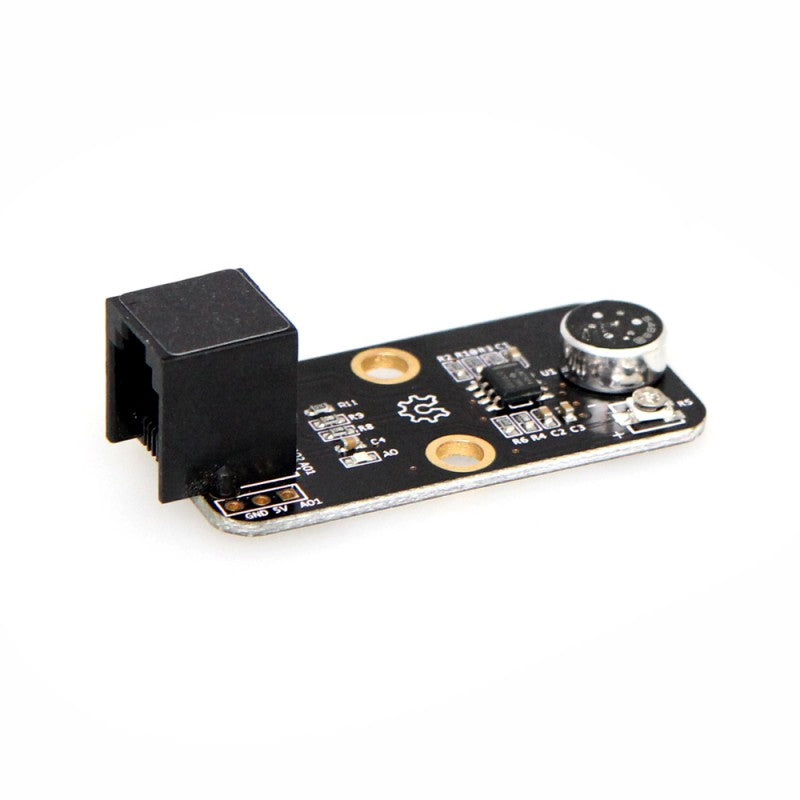

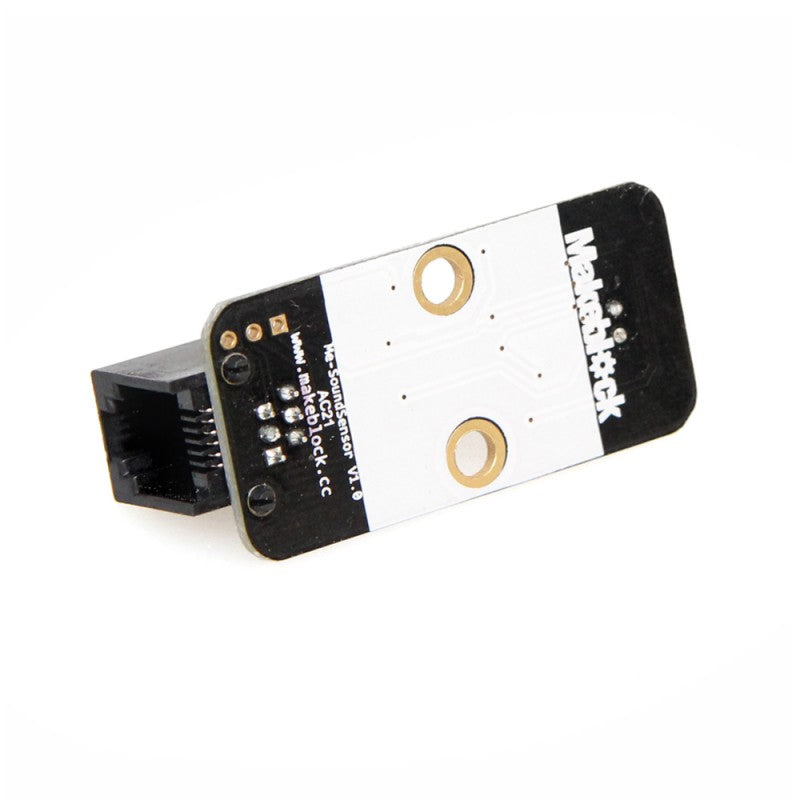

Makeblock Me Sound Sensor V1

€4,45 EUR €8,90
Tax included
Me Sound Sensor is designed to detect the intensity of sound in the surrounding environment.

Fast Delivery and Shipping across Europe
Free Delivery across Europe for order 149€ and more
  • Latvia and Lithuania: 1-2 business days
  • Finland: 1–3 business days
  • Other countries in Europe: 3–7 business days
  • Greece, Norway, Switzerland, United Kingdom: 5–10 business days

See more information about delivery and shipping here.

Me Sound Sensor is designed to detect the intensity of sound in the surrounding environment. You can use it in sound interative project such as a voice operated switch or build a dancing robot with music. Based on the power amplifier LM386 and the electret microphone, it can output analog values ranging from 0 to 1023. Due to a potentiometer, you can adjust the sensitivity according to different situations.

Features:
* Detect the intensity of sound in the surrounding environment
* Selectable sensitivity with a potentiometer
* A state indicator and a power indicator
* 16mm interval M4 mounting holes, compatible with Makeblock beams
* 2.54mmbreakout pins for connecting with jumper wires
* Easy wiring with 6 Pin RJ25 interface

Specification:
* RatedVoltage: 5V
* Signal type: Analog(A0 pin output about 483(quiet), from 483 to 1023(noise)), A1 pin output about 0(quiet), from 0 to 1024(noise). The sensitivity of A0 pin is higher than A1 pin.
* Size:24x48x 32mm(Length x Width x Height)"
